Messko數字顯示器D1272AT指定用途：

D1272AT 數字顯示器用于顯示過程值如溫度或油位。

調試儀表前， 務必閱讀并查看銘牌上和操作使用說明書 上的操作限定值。

根據所監控的濕度狀態對吸濕器進行烘干。

Messko數字顯示器D1272AT產品規格：

D1272AT數字顯示器是易于使用的裝置，用于顯示標準Pt100 或 4-20mA信號。正常操作時，測量值顯示在四位LCD顯示器上。

D1272AT數字式顯示器可選擇配備模擬輸入用于過程值 的遠距離傳輸。請見銘牌。

下列標準信號可在工廠設 定：

? 4 - 20mA

? 0 - 20mA

? 0 - 5V

? 0 - 10V

其它輸出信號可用信號轉換器補充。

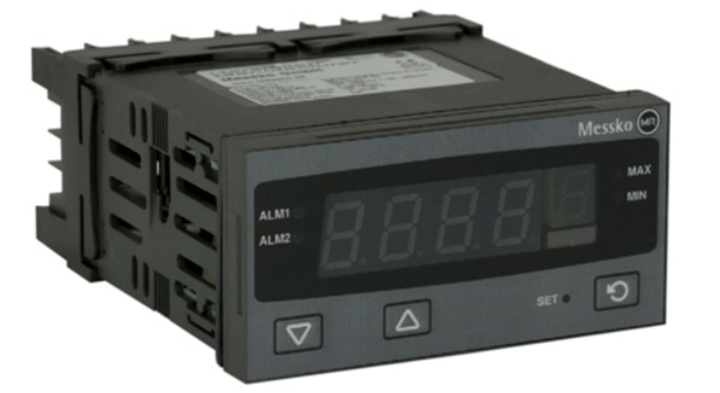

Digital Indicator D1272AT

Specified application

The D1272AT digital indicator is used to indicate process values such as temperature or oil level, for example.

It is important to read and observe the limit values for operation indicated on the nameplate and in the operating instructions prior to commissioning the device.

Product Specification

The D1272AT digital indicator is an easy-to-use device for the indication of standard Pt100 or 4-20mA signals.During normal operation, the measured value is shown o n t h e four-position LCD display.

The D1272AT digital indicator can be optionally equipped with an analog output for the remote transmission of the process value. See nameplate.

The following standard signals can be set at the factory:

? 4 - 20mA

? 0 - 20mA

? 0 - 5V

? 0 - 10V

Other output signals can be implemented with a signal converter.
